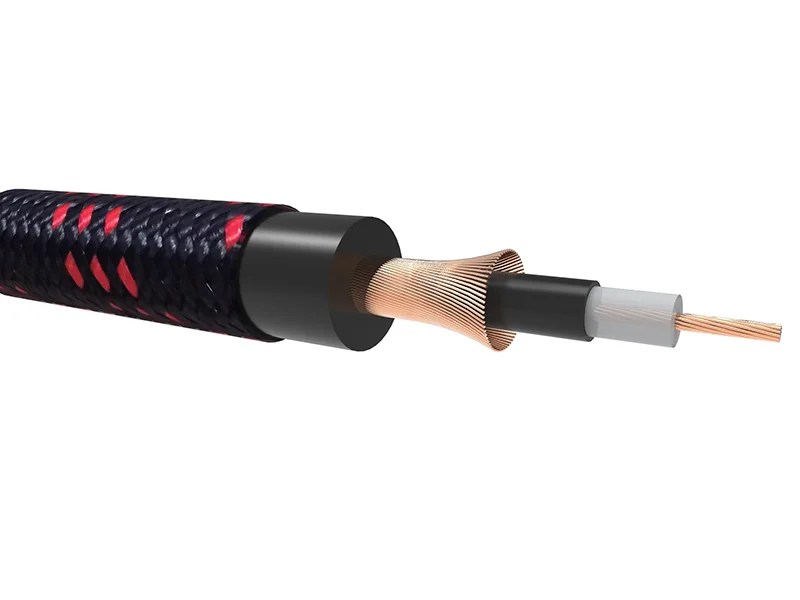

SGC116 24AWG Low Noise Guitar \ Instrument Cable With Vintage Style Jack
The SGC116 is a high-quality instrument cable with ultra flexible inner jacket and vintage tweed. Conductive carbon plastic shield and spiral shield gives an excellent protection against interference of all kinds, such as electromagnetic fields caused by dimmers, motors or power cables. This conductors built 24AWG using OFC (oxygen free copper).
This guitar cable is suited for all kinds of applications where reliable unbalanced signal transmission is needed.
Specifications
| Construction | Electrical characteristics | |||
| Cable model | SGC116 | Conductor resistance-100M | ≤ 7.9 ohm | |
| Type of cable | Instrument cable fabric | Capacity (C/S) ＠ 1kHz | 118 pF/m | |
| Conductor material | Bare stranded copper | Mechanical characteristics | ||
| Structure of conductor | 28 x 0.1mm | Temperature range | fixed installation: -25 °C to +80 °C | |
| Conductor section | 0.23 mm2 | flexible installation: -20 °C to +70 °C | ||
| American wire gauge | 24 AWG | Bending radius | fixed installation: 6 x outer diameter | |
| Insulation material | PE | flexible installation: 8 x outer diameter | ||
| Number of cores | 1 | |||
| Insulation colors | Transparent | |||
| Shielding | Conductive carbon plastic + 64 x 0.1mm BC – Spiral | |||
| Shielding factor | 100% | |||
| Inner jacket | Flexible PVC | |||
| Outer jacket | Vintage tweed | |||
| Outer jacket color | vintage style | |||
| Outer jacket dimension | Ø6.5 mm | |||
Packaging
- Plastic Reel,Plywood Reel,Cardboard Reel,Shrink-plastic packaging,
- Special packaging on request.
- Lower and upper lengths according to availability
- 100M / Roll, 400M / Carton
- 1 x 0.23 mm² (24 AWG)
- Stranded Oxygen-free copper (OFC)
- Conductive carbon plastic shield
- Ultra-high density spiral shielding
- Ultra flexible PVC inner jacket
- Vintage tweed outer jacket
- available in ten different vintage style
- 6.5 mm (Ø) outer diameter are available
