PC201 Parallel Balanced Audio Signal Patch Cable – 26AWG
This balanced dual signal cable contains two individual channels of audio cable bound together that can be easily separated when required. Features bare copper spiral shielding for protecting against interference of all kinds such as electromagnetic fields produced by dimmers, electric motors or power cables, conductors built using 26AWG OFC (oxygen free copper) and a rugged but flexible PVC jacket.
The twin conductors within each can be used to transfer a stereo or balanced audio signal, and is suited for use in recording studios and live performance where interference noise rejection is vital.
Size and packaging guidelines
| Specification | Chair | Armchair | Sofas |
| Height | 37" | 42" | 42" |
| Width | 26.5" | 32.5" | 142" |
| Depth | 19.5" | 22.5" | 24.5" |
| Assembly Required | No | No | Yes |
| Packaging Type | Box | Box | Box |
| Package Weight | 55 lbs. | 64 lbs. | 180 lbs. |
| Packaging Dimensions | 27" x 26" x 39" | 45" x 35" x 24" | 46" x 142" x 25" |
Specifications

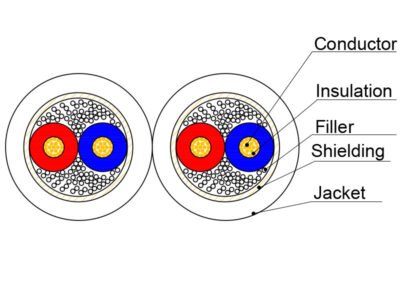

| Construction | Electrical characteristics | ||||
| Cable model | PC201 | Conductor resistance-100M | ≤ 15.2 ohm | ||
| Type of cable | Balanced signal dual Cable | Capacity (C/C) ＠ 1kHz | 60 pF/m | ||
| Conductor material | Bare stranded copper | Capacity (C/S) ＠ 1kHz | 115 pF/m | ||
| Structure of conductor | 7 x 0.15mm | Mechanical characteristics | |||
| Conductor section | 0.12 mm2 | Temperature range | fixed installation | -25 °C to +80 °C | |
| American wire gauge | 26 AWG | flexible installation | -20 °C to +70 °C | ||
| Insulation material | PE | Bending radius | fixed installation | 6 x outer diameter | |
| Number of cores | 2 | flexible installation | 8 x outer diameter | ||
| Insulation colours | Red / Blue | ||||
| Conductor twisting | Yes | ||||
| Shielding | 32 x 0.12mm BC – Spiral | ||||
| Shielding factor | 71% | ||||
| Outer jacket | Flexible PVC | ||||
| Outer jacket color | Black matt | ||||
| Outer jacket dimension | Ø4.0 x 8.0 mm | ||||
Packaging
- Plastic Reel,Plywood Reel,Cardboard Reel,Shrink-plastic packaging,
- Lower and upper lengths according to availability. Special packaging on request.
- 100M / Roll
- 400M / Carton
- 2 x 0.12 mm² (26 AWG)
- Stranded Oxygen-free copper (OFC)
- Ultra-high density spiral shielding
- Ultra flexible PVC outer jacket
- 4.0 x 8.0 mm (Ø) outer diameter
- Parallel & separable cable
