HC03P15 Power & DMX signal combination cable – 3×1.5mm2
This Hybrid cable with 1 pc double shielded DMX cable and 1 pc 3 x 1.5mm2 power cable. Power cores without a separately jacket. Operational ranges are e.g. DMX-applications. DMX pair double screened and acc. to DMX and AES/EBU specifications. Suitable as patch cable as well as for the fixed installation. All cross sections for AES/EBU, 0,22qmm and 0,34qmm additional for DMX applications. Highest flexibility despite double screen.
Specifications

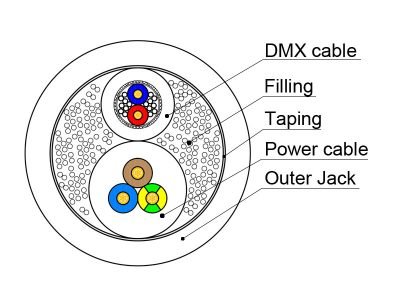

| Cable model | HC03P15 | HC03P25 | HC01P25 |
| Hybrid Cable | |||
| Twisting | 1 DMX cable + 1 power cable + tracers | 1 DMX cable + 1 power cable + tracers | 1 DMX cable + 1 power cable + tracers |
| Taping | Textile fleece | Textile fleece | Textile fleece |
| Outer jacket | PVC,black,Ø11.5 | PVC,black,Ø12.5 | PVC,black,Ø18.5 |
DMX Cable |
|||
| Conductor material | Bare stranded copper | Bare stranded copper | Bare stranded copper |
| Structure of conductor | 28x 0.1 mm | 28x 0.1 mm | 28x 0.1 mm |
| Conductor section | 0.23 mm2 | 0.23 mm2 | 0.23 mm2 |
| American wire gauge | 24 AWG | 24 AWG | 24 AWG |
| Insulation material | PE | PE | PE |
| Number of cores | 2 | 2 | 2 |
| Insulation colours | Red / Blue | Red / Blue | Red / Blue |
| Conductor twisting | Yes | Yes | Yes |
| Shielding 1 | AL/PET-foil | AL/PET-foil | AL/PET-foil |
| Shielding 2 | 16 x 6 x 0.1 mm TC – Braided | 16 x 6 x 0.1 mm TC – Braided | 16 x 6 x 0.1 mm TC – Braided |
| Filling | Cotton yarn | Cotton yarn | Cotton yarn |
| Separator | None | None | None |
| Outer jacket | Flexible PVC | Flexible PVC | Flexible PVC |
| Outer jacket color | Black matt | Black matt | Black matt |
| Outer jacket dimension | Ø5.0 mm | Ø5.0 mm | Ø5.0 mm |
| Conductor resistance-100M | ≤ 7.9 ohm | ≤ 7.9 ohm | ≤ 7.9 ohm |
| Capacity (C/C) ＠ 1kHz | 47 pF/m | 47 pF/m | 47 pF/m |
| Characteristic impedance | 110 ohm | 110 ohm | 110 ohm |
Power Cable |
|||
| Conductor material | Bare stranded copper | Bare stranded copper | Bare stranded copper |
| Structure of conductor | 48 x 0.2mm | 49 x 0.25mm | 49 x 0.25mm |
| Conductor section | 1.5 mm2 | 2.5 mm2 | 2.5 mm2 |
| Insulation material | PVC | PVC | PVC |
| Number of cores | 3 | 3 | 3 |
| Jacket | without jacket | without jacket | PVC,Black,Ø10.5 |
Mechanical characteristics |
|||
| Temperature range | fixed installation | -25 °C to +80 °C | |
| flexible installation | -20 °C to +70 °C | ||
| Bending radius | fixed installation | 10 x outer diameter | |
| flexible installation | 12 x outer diameter | ||
Packaging
Plastic Reel,Plywood Reel,Cardboard Reel,Shrink-plastic packaging,
Lower and upper lengths according to availability. Special packaging on request.
- DMX cable: 2 x0.22 mm² (24 AWG)
- Stranded Oxygen-free copper (OFC)
- H05VV-F 3G1.5 power cable
- Ultra flexible PVC outer jacket
- 11.5mm (Ø) outer diameter
