FAB425 4 x 2.5 mm2 low smoke zero halogen fire alarm cable
This product features a 13 AWG 4 conductor Stranded fire resistant power cable with silicone rubber insulation、AL-foil/PET shielding and low smoke zero halogen ( LSZH ) jacket 4 x 2.5 mm2.
It is used for fire monitoring/detection, power limited fire alarm systems, emergency lighting, smoke alarms, smoke detectors, signaling, audio circuits, control circuits, fire protective circuits, fire alarm system and security systems where low smoke, fume and zero halogen cable is required. The aluminum foil shielding provides protection from power frequency and radio frequency interference.
Specifications
| Cable model | FAB225 | FAB415 | FAB425 |
| Type of cable | Fire alarm cable | Fire alarm cable | Fire alarm cable |
| Conductor material | Stranded bare copper | Stranded bare copper | Stranded bare copper |
| Conductor section | 2.5 mm2 | 1.5 mm2 | 2.5 mm2 |
| American wire gauge | 13 AWG | 15 AWG | 13 AWG |
| Insulation material | LSZH | LSZH | LSZH |
| Number of cores | 2 | 4 | 4 |
| Insulation colors | Red / Black | Red / Blue / Grey/ Brwon | Red / Blue / Grey/ Brwon |
| Conductor twisting | Yes | Yes | Yes |
| Separator | PET | PET | PET |
| Drain wire | 1x 0.5 mm BC | 1x 0.5 mm BC | 1x 0.5 mm BC |
| Shielding | AL-Foil / PET | AL-Foil / PET | AL-Foil / PET |
| Outer jacket | LSZH | LSZH | LSZH |
| Outer jacket color | Red | Red | Red |
| Outer jacket dimension | Ø8.5 mm | Ø8.0 mm | Ø9.8 mm |
| Electrical characteristics | |||
| Conductor resistance-100M | ≤ 1.3 ohm | ≤ 1.3 ohm | ≤ 1.3 ohm |
| Operating Voltage | 300 V | 300 V | 300 V |
| Temperature Range | -40°C ~ +90°C | -40°C ~ +90°C | -40°C ~ +90°C |
Packaging
- Plastic Reel, Wooden spool, Shrink-plastic packaging, Roll, Pallet;
- Length: 100M
- Lower and upper lengths according to availability. Special packaging on request.

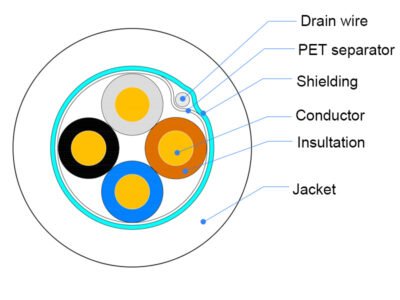

- 4 x 2.5 mm2 (13 AWG)
- Stranded bare copper conductor
- Insulation: Silicone rubber
- 0.038 mm AL-Foil/PET shielding
- Outer jacket: Low smoke and no halogen, LSZH
- Flame Rating: EN50200, PH30
