DL1222 22AWG 4-core professional DMX cable – 110 ohm
The DL1222 cables are designed for digital signal transmission according to the DMX and AES/EBU standards.
It is a cable for digital signal transmission with a characteristic impedance of 110 Ohm, consisting of four conductors with a section of 0.34 mm². They are both surrounded with an Aluminum foil PET and braiding, ensuring the best shielding of the cable, resulting in an excellent protection against interference of all kinds of electromagnetic fields, produced by dimmers, electric motors, power cables and many other electromagnetic interference sources.
Specifications

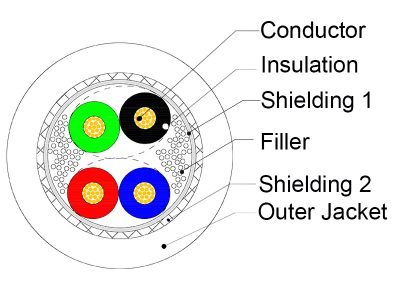

| Cable model | DL1222 | DL12 | DL1122 |
| Type of cable | 110 Ω DMX Cable | 110 Ω DMX Cable | 110 Ω DMX Cable |
| Conductor material | Bare stranded copper | Bare stranded copper | Bare stranded copper |
| Structure of conductor | 7 x 0.254 mm | 28 x 0.1 mm | 7 x 0.254 mm |
| Conductor section | 0.34 mm2 | 0.23 mm2 | 0.34 mm2 |
| American wire gauge | 22 AWG | 24 AWG | 22 AWG |
| Insulation material | PVC | PVC | PVC |
| Insulation color | Red / Blue | Red / Blue | Red / Blue / Black / Green |
| Number of cores | 4 | 4 | 2 |
| Filler | No | Cotton yarn | Cotton yarn |
| Shielding 1 | AL/PET Foil | AL/PET Foil | AL/PET Foil |
| Shielding 2 | 16 x 8 x 0.1 mm TC Braided | 16 x 8 x 0.1 mm TC Braided | 16 x 6 x 0.1 mm TC Braided |
| Outer Jacket | PVC, Black | PVC, Black | PVC, Black |
| Outer Jacket O.D | Ø7.5 | Ø7.0 | Ø6.5 |
Electrical characteristics |
|||
| Conductor resistance-1000M | ≤ 79 ohm | ≤ 79 ohm | ≤ 79 ohm |
| Characteristic impedance | 110 Ω | 110 Ω | 110 Ω |
| Capacity (C/C) ＠ 1kHz | 48 pF/m | 48 pF/m | 48 pF/m |
Mechanical characteristics |
|||
| Temperature range | fixed installation | -40 °C to +80 °C | |
| flexible installation | -20 °C to +60 °C | ||
| Bending radius | fixed installation | 6 x outer diameter | |
| flexible installation | 8 x outer diameter | ||
Packaging
- Plastic Reel, Wooden spool, Shrink-plastic packaging, Roll, Pallet;
- Length: 100M
- Lower and upper lengths according to availability. Special packaging on request.
- 2 x 0.34mm² (22 AWG)
- Stranded Oxygen-free copper
- Special PE insulation
- AL/PET Foil and ultra-high density braided shielding
- Ultra flexible PVC outer jacket
- 110 Ω characteristic impedance
- 7.5mm (Ø) outer diameter
