DC601 4 pair 24AWG CAT6 UTP Network Patch Cable – Strand Bare Conductor
The DC601 is a CAT6 networking cable featuring stranded conductor and a flexible outer jacket which is specifically designed for Horizontal Wiring in LAN.

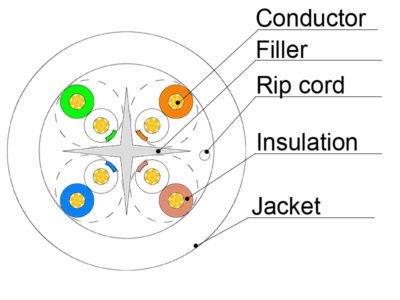

The conductor section of the DC601 consists of 4 pair with stranded 24 AWG conductors with a plastic + shaped separator in between them. Thanks to this plastic separator, better performance in terms of cross talk and system noise can be achieved resulting in a higher bandwidth. Supports 10Base-T, 100Base-TX, 1000Base-T and 10GBase-T gigabit.
Specifications
| Cable model | DC601 | DC602 | DC603 | |
| Type of cable | CAT6 UTP Network cable | CAT6 UTP Network cable | CAT6 FTP Network cable | |
| Conductor material | Stranded bare copper | Solid bare copper | Solid bare copper | |
| Structure of conductor | 7 x 0.2mm | 1 x 0.56mm | 1 x 0.56mm | |
| Conductor section | 0.22 mm2 | 0.25 mm2 | 0.25 mm2 | |
| American wire gauge | 24 AWG | 23 AWG | 23 AWG | |
| Insulation material | HDPE Ø1.02 | HDPE Ø1.02 | HDPE Ø1.14 | |
| Insulation color | Orange / White & Orange ;Green / White & Green ; Blue / White & Blue ; Brown / White & Brown | Orange / White & Orange ;Green / White & Green ; Blue / White & Blue ; Brown / White & Brown | Orange / White & Orange ;Green / White & Green ; Blue / White & Blue ; Brown / White & Brown | |
| Number of cores | 8 (4 pairs) | 8 (4 pairs) | 8 (4 pairs) | |
| Shielding | No | No | AL/PET foil | |
| Outer Jacket | PVC, Black | PVC, Black | PVC, Black | |
| Outer Jacket O.D | Ø6.2 | Ø6.2 | Ø7.2 | |
Electrical characteristics |
||||
| Conductor resistance-1000M | ≤ 87 ohm | ≤ 72 ohm | ≤ 72 ohm | |
| Rated voltage | 300 V | 300 V | 300 V | |
| Characteristic impedance | 100 Ω ± 15 | 100 Ω ± 15 | 100 Ω ± 15 | |
| Operating capacity | 48 pF/m | 48 pF/m | 48 pF/m | |
| Propagation delay | 43 ns/100m @ 1-100 MHz | 43 ns/100m @ 1-100 MHz | 43 ns/100m @ 1-100 MHz | |
| Delay skew | 0.25 nsec/m | 0.25 nsec/m | 0.25 nsec/m | |
Mechanical characteristics |
||||
| Tensile strength | 100 N | 100 N | 100 N | |
| Temperature range | fixed installation | -40 °C to +80 °C | ||
| flexible installation | -20 °C to +70 °C | |||
| Bending radius | fixed installation | 8 x outer diameter | ||
| flexible installation | 10 x outer diameter | |||
Packaging
- Plastic Reel,Plywood Reel,Cardboard Reel,Shrink-plastic packaging;
- Length: 305M
- Lower and upper lengths according to availability. Special packaging on request.
- Stranded Oxygen-free copper (OFC)
- 24 AWG (7 * 0.2mm) thin and dense stranded conductors
- 6.2 mm (Ø) outer diameter
- Reference Standard: UL Subject 444,EIA/TIA568 & ISO/IEC 11801
- 250 Mhz performance, up to 10GBase-T
