CYB04 Classic Series Mono JACK Signal Combiner or Splitter Cable with 1/4″ Mono JACK to 2 x RCA Male – Gold
The CYB04 Classic series 6.35 mono JACK to 2 x RCA insert cable featuring high quality audio connectors, and the ultra flexible balanced microphone cable.

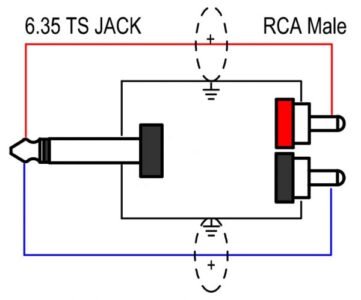

This Y cable will combine both the left and right channels of audio from a dual RCA output into a single mono signal containing equal parts of both the left and right channels. Great for plugging a CD player output into a mono input on a mixer or guitar amp.
Also be used in the opposite fashion, to split a mono signal from a 1/4″ jack connector, into 2 identical signals that pass to each of the RCA connectors. Ideal for plugging an instrument into or line level signal into a device with RCA sockets.
Specifications
- Connector 1 : 6.3 mm mono JACK plug, black, JACK2M01B
- Connector 2 : 2 x RCA / Phono male connector, black, RCA02M
- Cable Type: 24 AWG Balanced microphone cable, spiral shielding, SMC22
Packaging
- Sleeve, plastic bag, paper box and blister packing are available;
- Special packaging on request.
- Oxygen free copper (OFC)
- 24 AWG thin and dense stranded conductors
- 2C*20/0.12mm + 64/0.12mm (spiral shield)
- Ultra-high density spiral shielding
- Ultra flexible PVC jacket
- 4.0 mm (Ø) outer diameter, black
- Mono JACK and RCA Plug, Black
