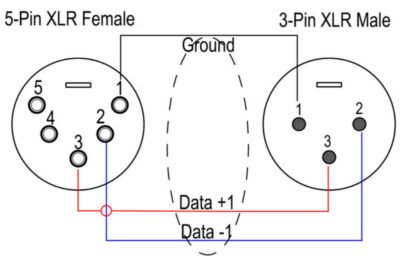

CDX05 Classic DMX Adapter Cable with 5-pin XLR Female to 3-pin XLR Male – Dual Shielding 110Ω Cable
The CDX05 Classic series 5-pin XLR female to 3-pin XLR male DMX adapter cable featuring high quality XLR connectors, and the ultra flexible 110ohm dual shielding DMX cable.
It is suitable for carrying the DMX512 digital data protocol, commonly used for stage lighting and effects equipment such as digital light controllers, consoles, dimmers, lasers and fog machines.
Specifications
- Connector 1 : 5-pin XLR female connector, nickel, XLR5F002
- Connector 2 : 3-pin XLR male connector, nickel, XLR3M001
- Cable Type: 24 AWG 2-core DMX cable, dual shielding, DL11
Packaging
- Sleeve, plastic bag, paper box and blister packing are available;
- Special packaging on request.

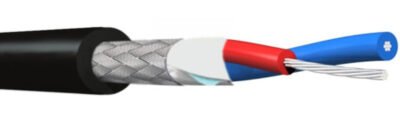

- Oxygen free copper (OFC)
- 24 AWG thin and dense stranded conductors
- 2C*20/0.12mm + 16*6/0.12mm (Braided shield)
- 110Ω characteristic impedance
- Ultra flexible PVC jacket
- 6.0 mm (Ø) outer diameter, black
- 3-pin XLR and 5-pin XLR connector, Nickel
